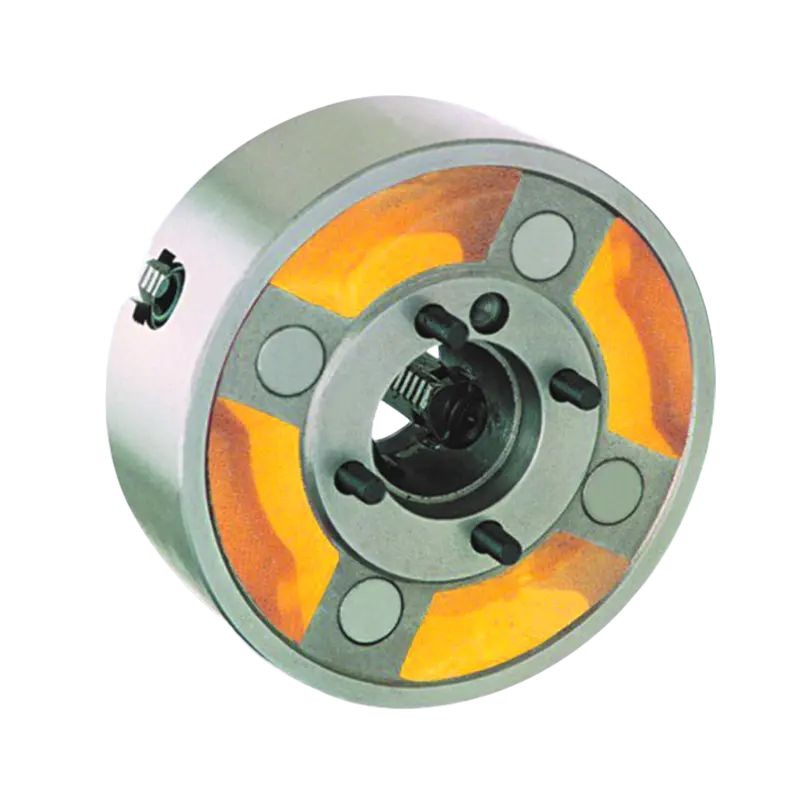

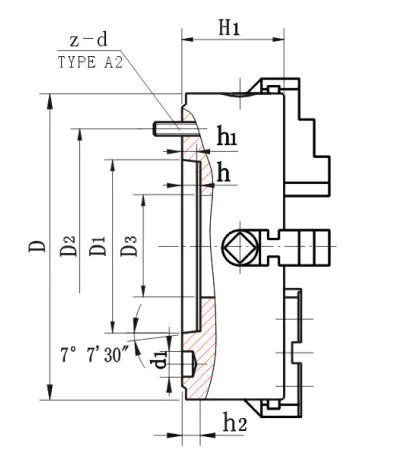

K72 Direct Mountins Four-jaw Independent Chucks (From A2:mounting from front)

D Size

Short taper No.

D1

D2

D3

H1

h

h1

h2

d1

Z-d

kg Net WT.

160

4

63.513

82.6

45

65

13

10

6.5

14.7

4-M10

9

200

4

63.513

82.6

56

75

13

10

6.5

14.7

4-M10

15

250

4

63.513

82.6

61

80

-

10

6.5

14.7

4-M10

23

320 350

4

63.513

82.6

61

90

-

10

6.5

14.7

4-M10

40,53

200

5

82.563

104.8

56

75

15

12

6.5

16.3

4-M10

15

250

5

82.563

104.8

75

80

15

12

6.5

16.3

4-M10

23

320 350

5

82.563

104.8

80

90

-

12

6.5

16.3

4-M10

40,53

400

5

82.563

104.8

80

95

-

12

6.5

16.3

4-M10

58

200

6

106.375

133.4

56

75

16

13

6.5

19.5

4-M12

15

250

6

106.375

133.4

75

80

16

13

6.5

19.5

4-M12

23

320 350

6

106.375

133.4

95

90

16

13

6.5

19.5

4-M12

40,53

400

6

106.375

133.4

95

95

16

13

6.5

19.5

4-M12

58

500

6

106.375

133.4

103

106

-

13

6.5

19.5

4-M12

102

250

8

139.719

171.4

75

80

18

14

8.0

24.2

4-M16

23

320 350

8

139.719

171.4

95

90

18

14

8.0

24.2

4-M16

40,53

400

8

139.719

171.4

125

95

18

14

8.0

24.2

4-M16

55

500

8

139.719

171.4

136

106

-

14

8.0

24.2

4-M16

102

320 350

11

196.869

235.0

95

90

20

16

10.0

29.4

4-M20

40,53

400

11

196.869

235.0

125

95

20

16

10.0
